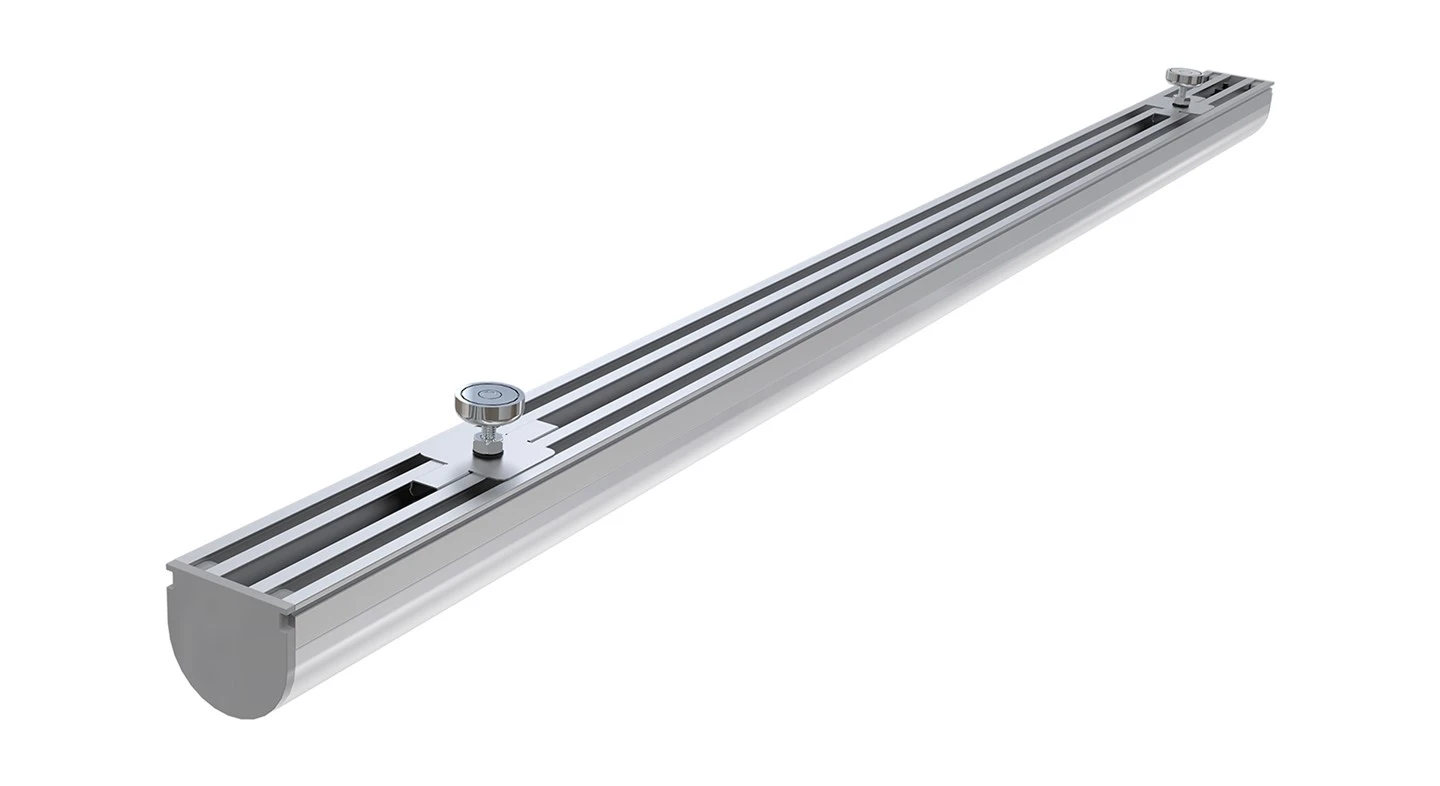

Magnetic Retrofit--2

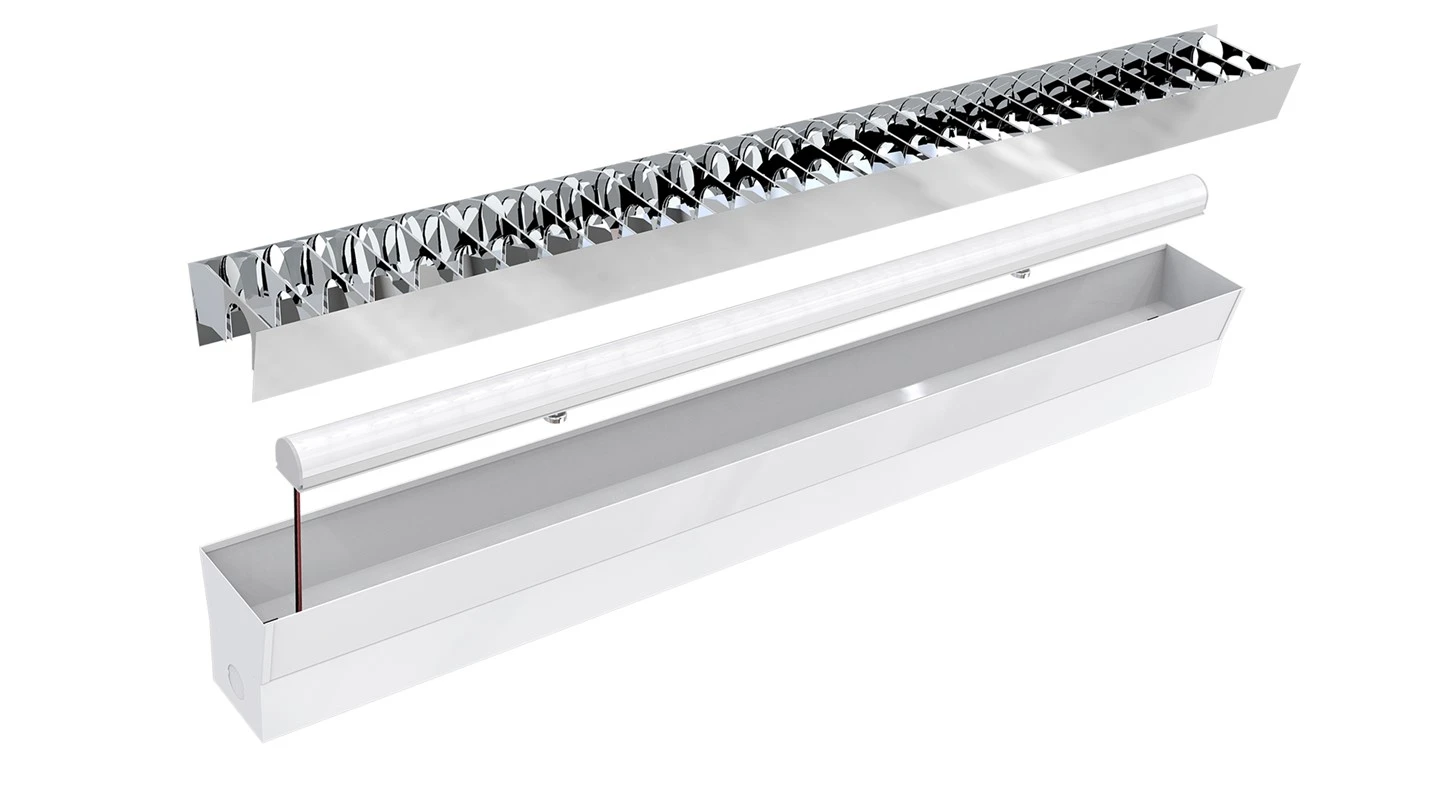

Magnetic Retrofit--3

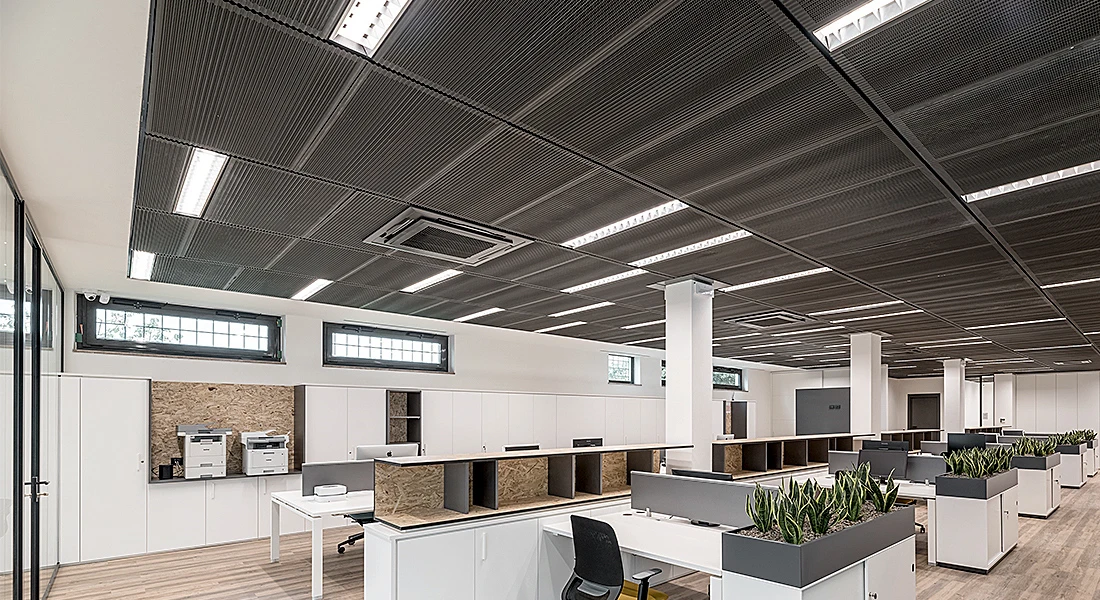

Magnetic Retrofit--4

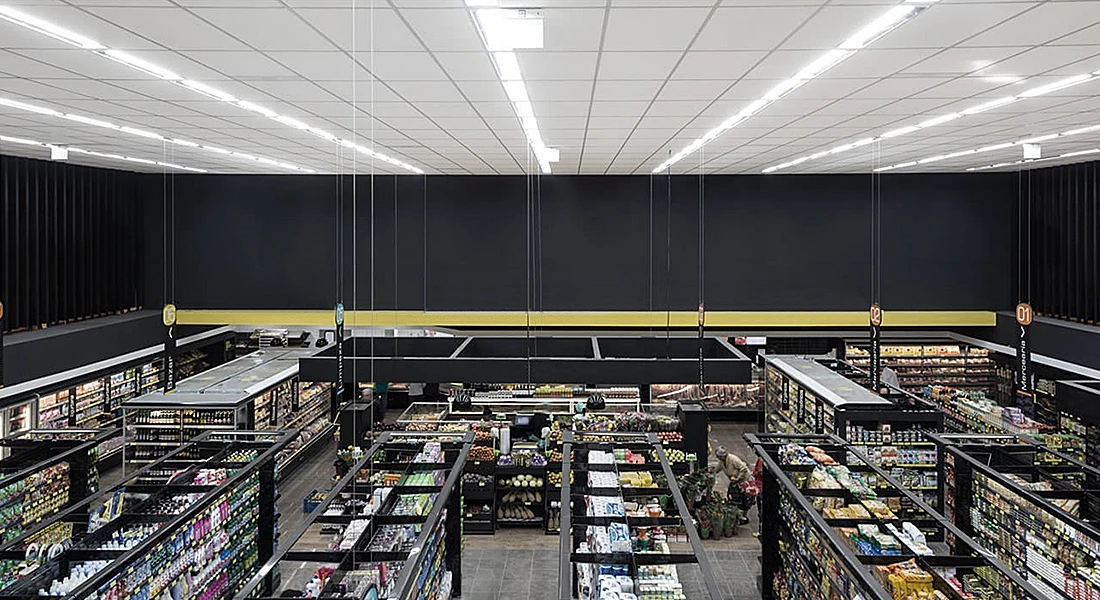

Magnetic Retrofit--5

Beskrivelse:

Magnetic LED Retrofit is an LED module with up to 130lm/w (Ra>90, R9>50, SDCM<3). Magnet tool-free installation, easy to maintain, saves labor costs. It is widely used to replace the traditional T5/T8 fluorescent tube light inside grille lights in offices, schools, hypermarkets, and retail stores.

Trekk:

>Patentdesign for å erstatte det tradisjonelle T5/T8 lysrøret i troffer

>Strøm og farge (3CCT) felt-justerbar

> Up to 130lm/w@4000lm (Ra>90,R9>50,SDCM<3)

>Magnet Tool-gratis installasjon, lett å vedlikeholde, spar arbeidskostnader

>80 % mer energibesparelse sammenlignet med lysrør

Send Inquiry

Download

Description

Technical Parameters

INTRODUKSJON:

Toppo Magnetic LED Retrofit is a time-saving alternative to directly replace fluorescent lamps with LEDs. High efficacy up to 135 lm/w (Ra>90, R9>50, SDCM<3), power switch from 14-30W, 3CCT switch from 3000K/4000K/5000K, various sizes of L540mm, L1160mm, L1460mm. With magnetic, tool-free installation, in just 1 minute, your existing fluorescent tube fixtures (recessed, strip, wrap, etc.) can be converted to energy-efficient, long-lasting LED lights while preserving the look of your space.

Bestillingskode	Nominell effekt	LM/W	Lumen	SDCM/Ra	IP klasse	Produktdimensjon	GW/CTN	QTY/CTN
TU100-02N-PT1-24F10-01	14W/24W	Typ.120	typ.1680/2880	SDCM<3/Ra80,90	IP20	L540xB26xH24	9,91 kg	25 stk
TU100-04N-AT1-30F10-01	14W/30W	Typ.130	typ.1820/3900	SDCM<3/Ra80,90	IP20	L1160xB26xH24	14,93 kg	25 stk
TU100-05N-AT1-30F10-01	14W/30W	Typ.130	typ.1820/3900	SDCM<3/Ra80,90	IP20	L1460xB26xH24	17,4 kg	25 stk

Magnetic Retrofit -1

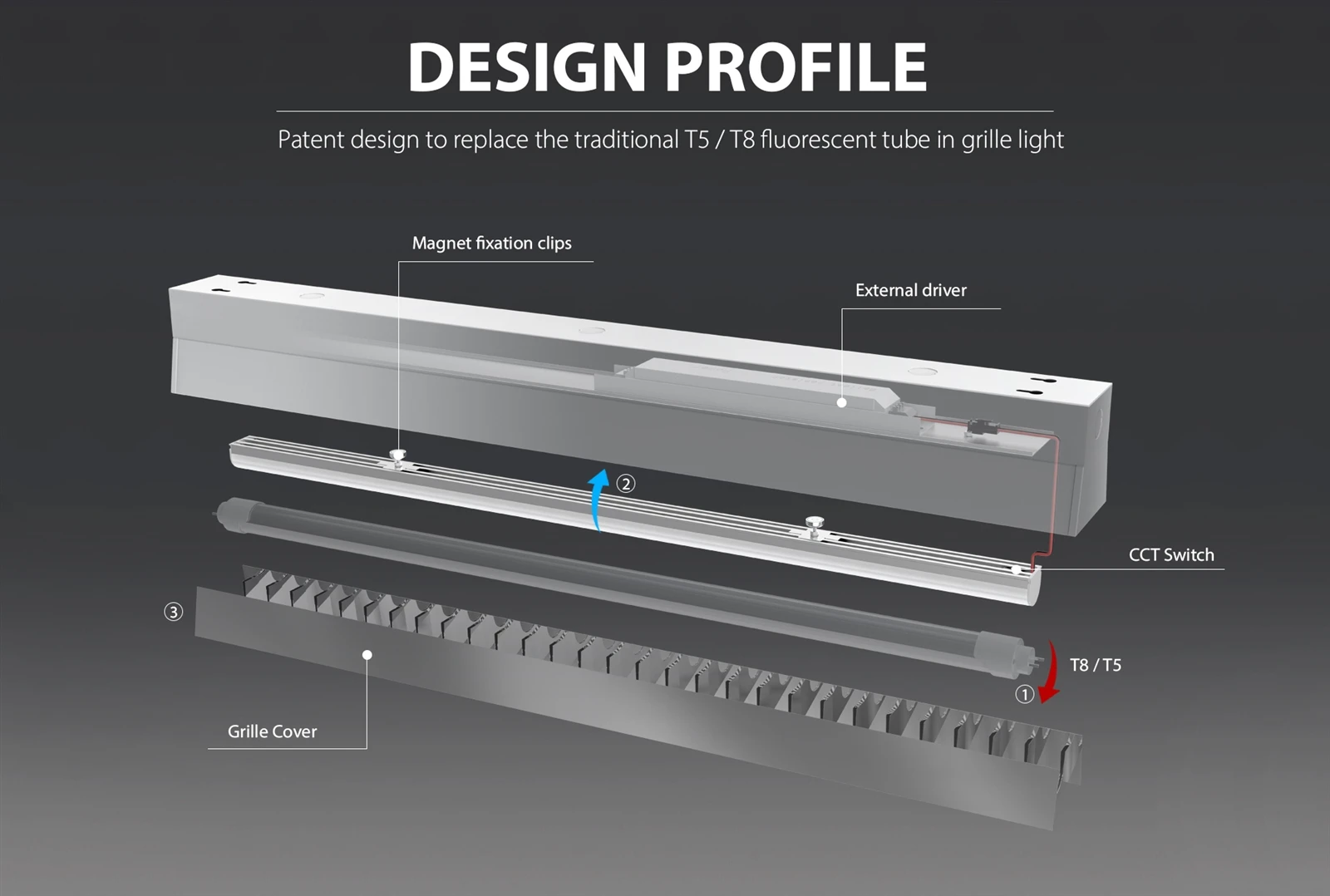

Magnetic Retrofit -2

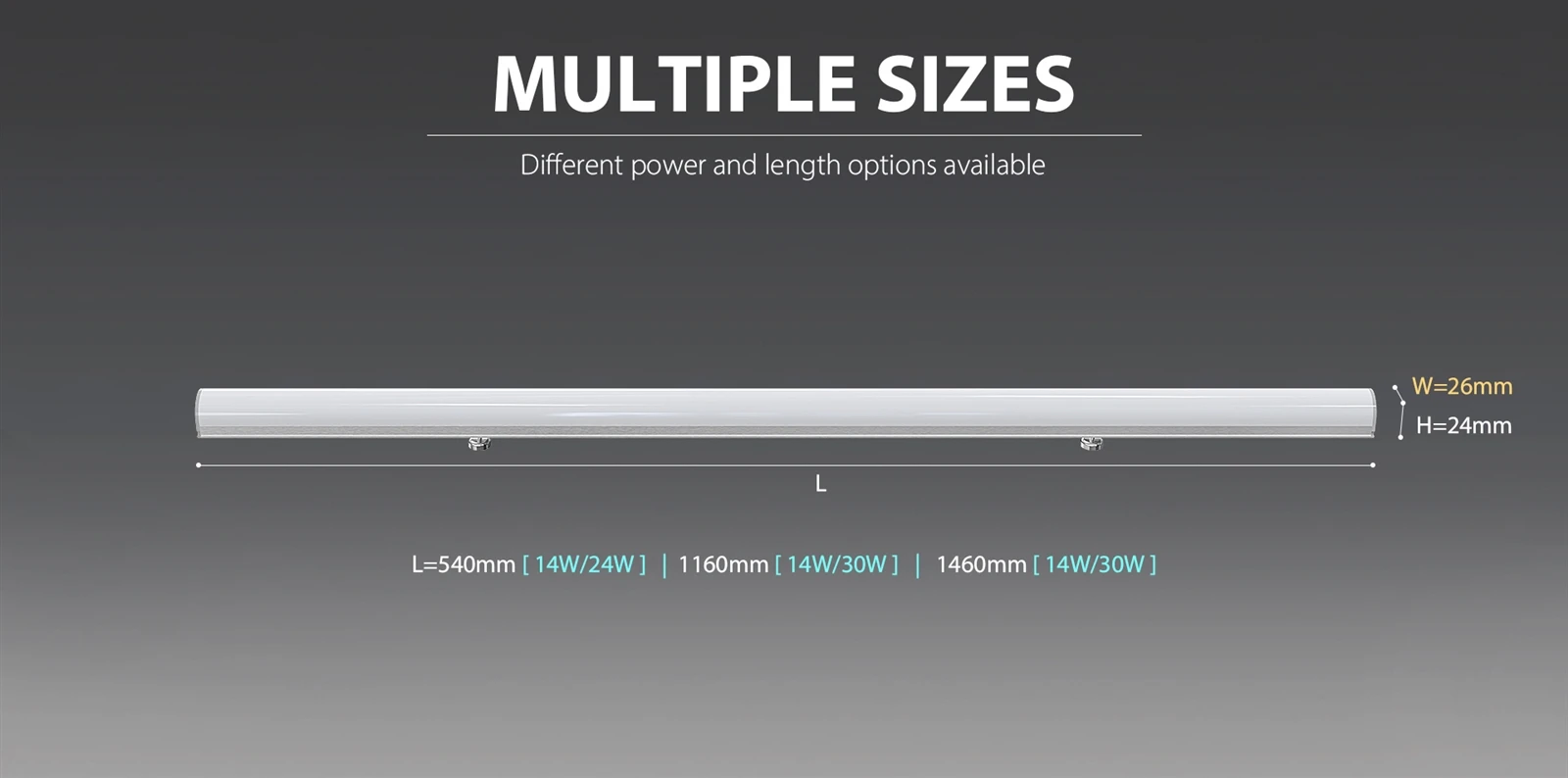

Magnetic Retrofit -3
